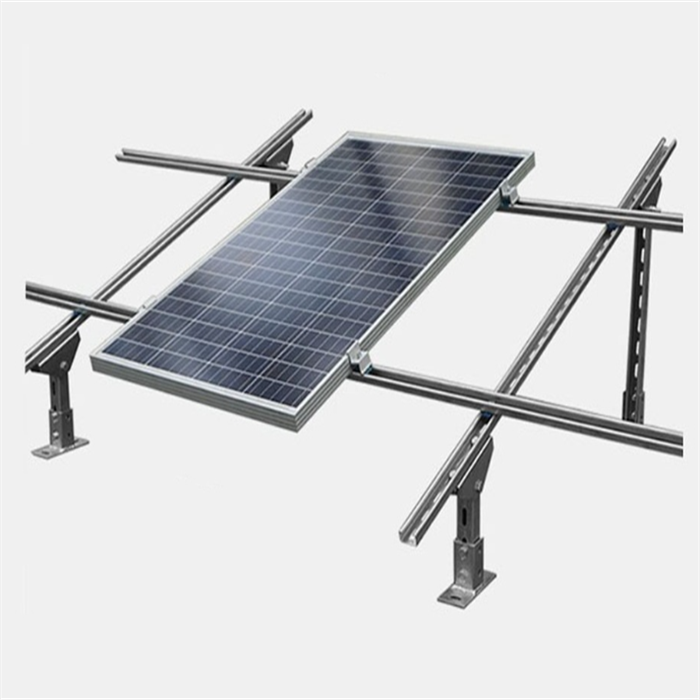

Aluminum ground mounting system is a highly anti - corrosive and most aesthetic structure for ground mount installation. The AL6005 -T5 supporting footing is delivered with pre - assembled design of the highest level in factory and simplifies construction site work to the largest degree. The optimized design is carried out by experienced engineers to offer different joints according to different site conditions. It can be installed on ground screws or concrete foundations, and achieves variable inclination and height and makes plant design flexible.
| Parameter | Description |
|
Material |
AL6005 -T5 (Anodized)
|
|
Design Standard |
JIS C8955 -2011.AS/NZS 1170.0,IEC62817,etc. |
|
Foundation Type |
Driven Pile, Ground Screw or Concrete |
|
Galvanized Thickness |
70um -100um, Per Local Codes |
|
Wind Load |
≤60m/s, Per Local Codes |
|
Snow Load |
≤16KN/M，Per Local Codes |
|
Module Type |
Frame or framelss |
|
Panel Layout |
Portrait or Landscape |
|
Service Life |
≥25 years |
| Warranty | 12 years |
1. High salt fog or high corrosion areas
2. Light weight, easy installation
3. Highly pre -assembled design before shipment makes installation time -saving
4. Corrosion resistant and light -weight ensured by aluminum structure
5. Wide range of rails and joints for different site conditions
