    - Solar PV Ground Mounting System -
    Home-Products- Solar PV Ground Mounting System -High Corrosion Areas Solar Panel Aluminum Ground Mounting System
    High Corrosion Areas Solar Panel Aluminum Ground Mounting System
    High Corrosion Areas Solar Panel Aluminum Ground Mounting System
  • High Corrosion Areas Solar Panel Aluminum Ground Mounting System
  • High Corrosion Areas Solar Panel Aluminum Ground Mounting System
  • High Corrosion Areas Solar Panel Aluminum Ground Mounting System
  • High Corrosion Areas Solar Panel Aluminum Ground Mounting SystemHigh Corrosion Areas Solar Panel Aluminum Ground Mounting SystemHigh Corrosion Areas Solar Panel Aluminum Ground Mounting System

    High Corrosion Areas Solar Panel Aluminum Ground Mounting System

    1. Aluminum is a highly recyclable material, contributing to the sustainability of solar installations. Choosing an aluminum ground mounting system aligns with eco-friendly practices and reduces the environmental impact of your solar project. 2. Aluminum is naturally resistant to corrosion, making it a durable option for outdoor installations. It can withstand exposure to various weather conditions, including rain, snow, and UV radiation, without compromising its integrity.

    High Corrosion Areas Solar Panel Aluminum Ground Mounting System

    Aluminum Solar Ground Mounting System Advantage



      • High Strength-to-Weight Ratio: Aluminum is known for its strength-to-weight ratio, meaning it provides excellent structural support while being lightweight. This advantage simplifies transportation, handling, and installation, making the process more efficient.

      • Corrosion Resistance: Aluminum is naturally resistant to corrosion, making it a durable option for outdoor installations. It can withstand exposure to various weather conditions, including rain, snow, and UV radiation, without compromising its integrity.

      • Adjustable and Versatile: Aluminum ground mounting systems offer adjustability and versatility, allowing for easy customization to suit different terrains and installation angles. This adaptability makes them suitable for various project requirements and optimizes solar panel performance.

      • Quick and Easy Installation: The modular design of these systems, along with pre-assembled components, simplifies the installation process. This advantage saves time and effort on the job site, enabling faster project completion.

      • Minimal Maintenance: Aluminum ground mounting systems require minimal maintenance due to their sturdy and self-cleaning design. They are designed to shed dirt and debris, reducing the need for regular cleaning and upkeep.

      • Cost-effective: Aluminum ground mounting systems are often more affordable compared to other mounting options. The lightweight nature of aluminum reduces transportation and installation costs, making it a cost-effective solution for solar projects.

      • Sustainability: Aluminum is a highly recyclable material, contributing to the sustainability of solar installations. Choosing an aluminum ground mounting system aligns with eco-friendly practices and reduces the environmental impact of your solar project.



    Technical Parameters


    Parameter Description
    Material Al6005-T5
    Design Standard
    JIS C8955 -2011.AS/NZS 1170.0,IEC62817,etc.
    Foundation Type
    Q235 Hot Dip Galvanized Steel
    Galvanized Thickness
    70um -100um, Per Local Codes
    Wind Load
    ≤60m/s, Per Local Codes
    Snow Load
    ≤16KN/M,Per Local Codes
    Module Type
    Compatible with all modules
    Panel Layout
    Portrait or Landscape
    Service Life
    ≥25 years
    Warranty
    20 years

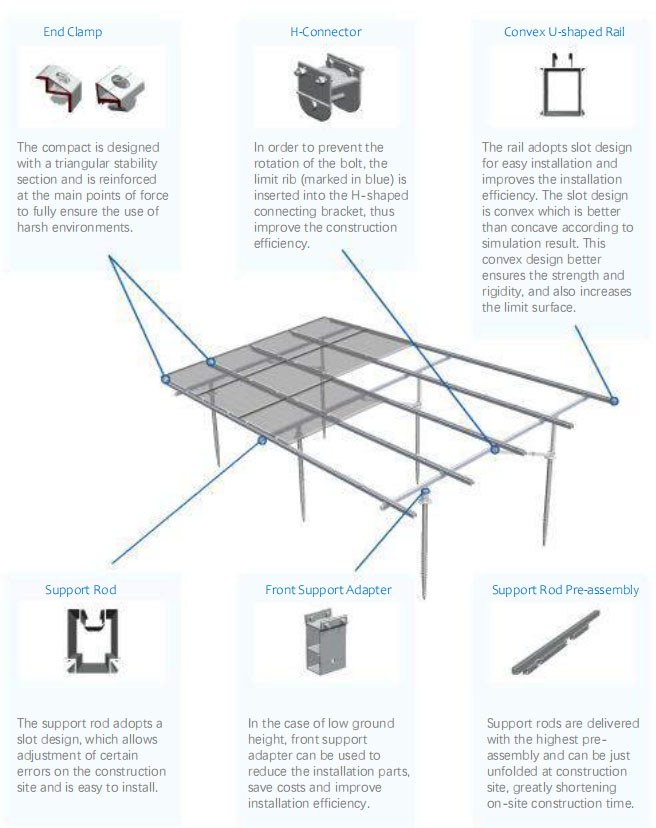

    Mounting System Details


    photovoltaic ground mounting system

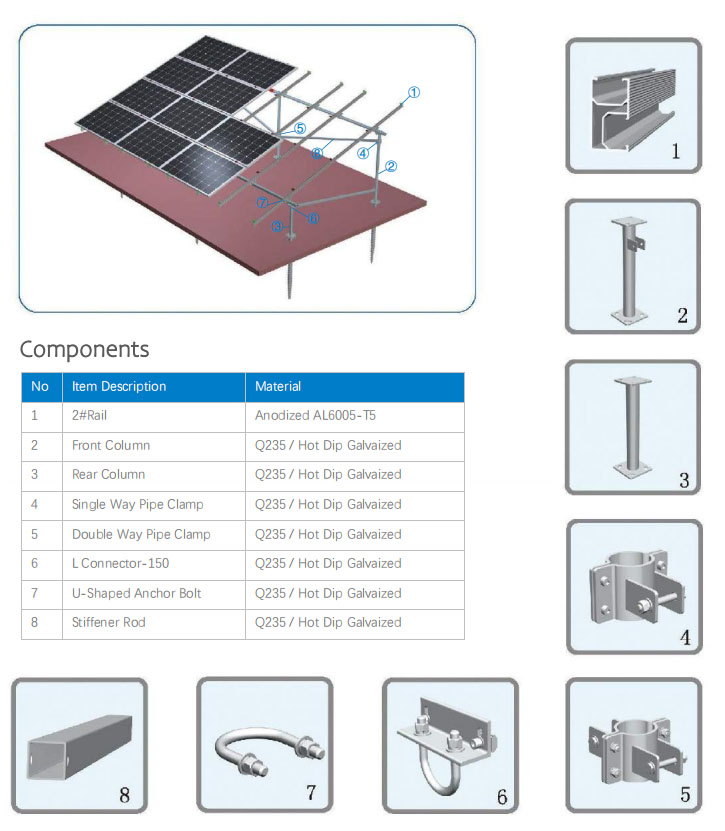

    Components Details

    solar ground mounting system parts


    Features

    Solar aluminum ground mounting systems have several great features that make them an excellent choice for solar panel installations.


      • Versatility: These mounting systems are designed to be adaptable to various terrains, including flat or sloped ground. They can be easily adjusted to accommodate different installation angles and optimize solar panel performance.

      • Durability: Made from high-quality aluminum, these mounting systems offer excellent strength and corrosion resistance, ensuring long-term durability even in challenging weather conditions.

      • Easy Installation: The modular design of aluminum ground mounting systems allows for quick and straightforward installation. They often come with pre-assembled components and streamlined installation processes, saving time and effort.

      • Flexibility: These systems are compatible with a wide range of solar panel sizes and configurations, providing flexibility for different project requirements. They can be easily customized to accommodate specific panel layouts and maximize energy production.

      • Maintenance-friendly: With their simple and sturdy design, aluminum ground mounting systems require minimal maintenance. They typically feature self-cleaning capabilities to shed dirt and debris, ensuring optimal solar panel performance over time.

      • Sustainability: Aluminum is a lightweight and recyclable material, making these mounting systems an eco-friendly choice. They contribute to reducing the carbon footprint of solar installations while maintaining structural integrity.



    High Corrosion Areas Solar Panel Aluminum Ground Mounting System
