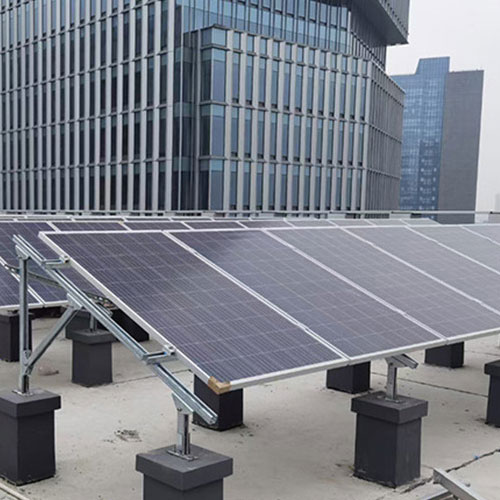

Q235 Zinc Coated Galvanized Steel Ground Mounting Bracket System

Features

Conventional ground mounting rack types include: spiral pile ground photovoltaic brackets, cast-in-place pile ground photovoltaic brackets, concrete pipe pile ground photovoltaic brackets, flexible cable ground photovoltaic brackets (special types), fixed seasonally adjustable ground photovoltaic brackets, etc.

In addition, because the tracking brackets involve different styles, the technical requirements are very high, and a control system needs to be configured.

Advantage

1. Heavy snow load or strong wind areas
2. Hot -dip galvanized thickness 70um -100um
3. Customizable design
4. Quick assembly

Technical Parameters

Parameter	Description
Material	Q235 or Q355
Design Standard	JIS C8955 -2011.AS/NZS 1170.0,IEC62817,etc.
Foundation Type	Driven Pile, Ground Screw or Concrete
Galvanized Thickness	70um -100um, Per Local Codes
Wind Load	≤60m/s, Per Local Codes
Snow Load	≤16KN/M，Per Local Codes
Module Type	Compatible with all modules
Panel Layout	Portrait or Landscape
Service Life	≥30 years
Warranty	20 years
