L Bracket and Hanger Bolt Kit For PV Roof Mounting System

L Bracket and Hanger Bolt Kit For PV Roof Mounting System

Fetures

On the other hand, the Hanger Bolt Kit consists of hanger bolts, nuts, and washers. Hanger bolts are threaded rods with a wood screw on one end and a machine thread on the other. They are used to anchor the L Brackets to the surface, providing a reliable and adjustable mounting solution.

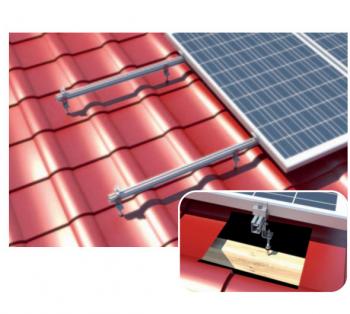

When installing a PV system, the L Bracket and Hanger Bolt Kit allows for easy and flexible positioning of the solar panels, optimizing their exposure to sunlight. This ensures maximum energy production and efficiency.

It's worth noting that the L Bracket and Hanger Bolt Kit is designed to be compatible with different types of PV mounting systems, including both roof-mounted and ground-mounted installations. This versatility makes them suitable for a wide range of solar projects, whether it's for residential, commercial, or industrial applications.

Technical Details

Application Roofing Type: Corrugated / Trapezoidal Metal Roof and Corrugated Fiber Cement Roof

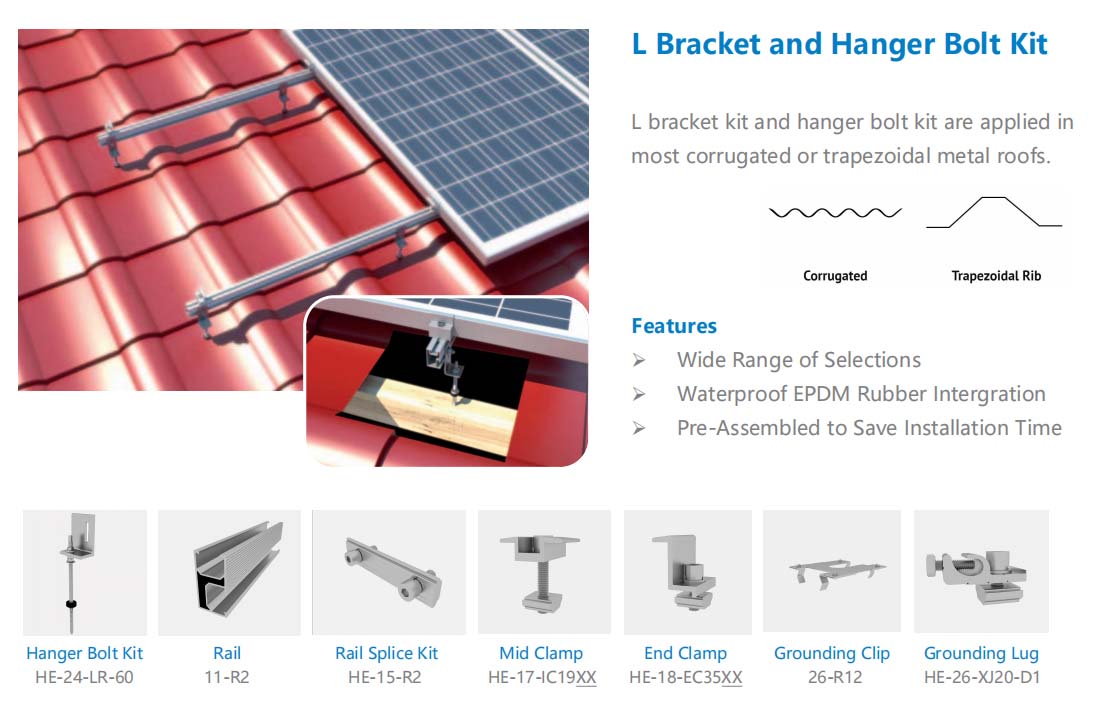

L bracket kit and hanger bolt kit are applied in most corrugated or trapezoidal metal roofs. They are used to screw into steel purlins or wooden rafters.

Material: AL6005-T5 Aluminum Alloy
SUS304 Stainless Steel
EPDM Rubber Pad
Surface Finish: Anodizing (≥10μm)
Warranty: 12 Years
