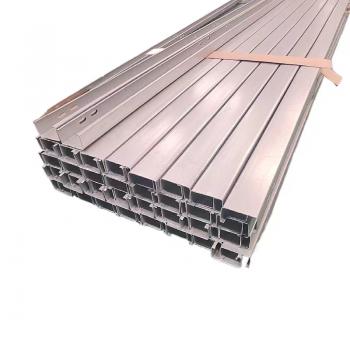

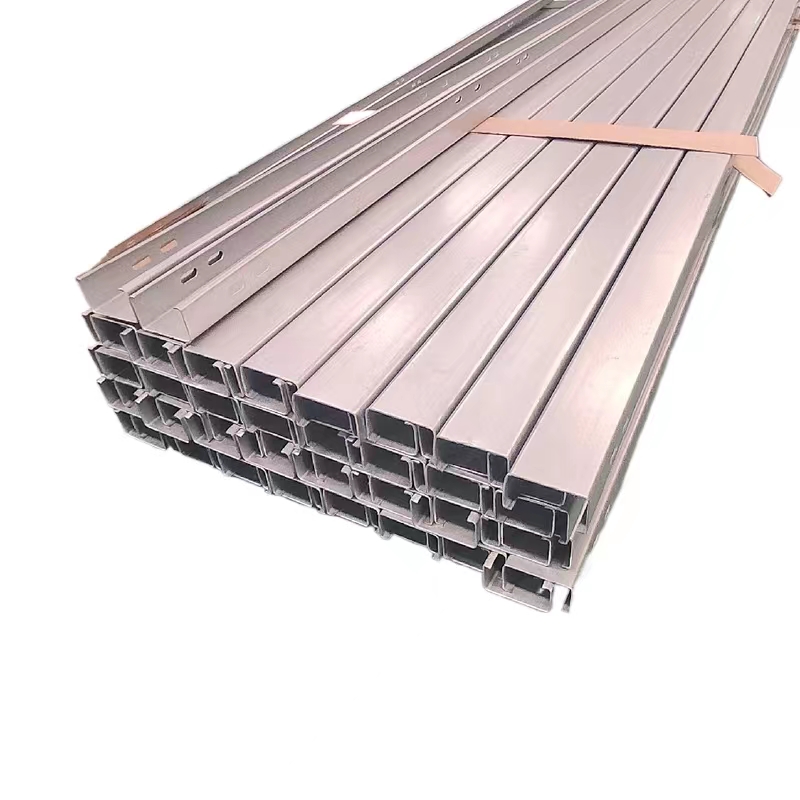

    Structure Galvanized C Channel Steel C Purlin For PV System
    Structure Galvanized C Channel Steel C Purlin For PV System
  • Structure Galvanized C Channel Steel C Purlin For PV System
  • Structure Galvanized C Channel Steel C Purlin For PV System
  • Structure Galvanized C Channel Steel C Purlin For PV System
  • Structure Galvanized C Channel Steel C Purlin For PV SystemStructure Galvanized C Channel Steel C Purlin For PV SystemStructure Galvanized C Channel Steel C Purlin For PV System

    Structure Galvanized C Channel Steel C Purlin For PV System

    The pv system used support beam is available in U-shaped and C-shaped styles, which can be selected according to the actual needs of customers. The U-shaped support beam has the advantages of simple structure and convenient installation, and is suitable for various types of solar photovoltaic power generation systems. C-type support beams have higher stability and load-bearing capacity, and are suitable for large-scale solar photovoltaic power generation projects.

      Suitable thickness: 1.2-3mm;

      Suitable material: Q235, Q355, Zn-Al-Mg coated steel coil;

      Surface treatment: 60-80u Zinc coated;

      Hole position: customizable;

      Hole shape: Φ8mm, Φ10mm, Φ12mm or customizable

    Structure Gavlanized C Channel Steel C Purlin For PV System

    Techinical Parameters


    Effetive Width 60-300mm
    Height 40-80mm
    Suitable Material Q235, Q355, Zn-Al-Mg coated steel coil
    Avaliable Material Thickness 1.5-3mm
    Surface Treatment Zinc coated at 60-80u, according to end user's requirements


    C purlin rail for pv mounting system

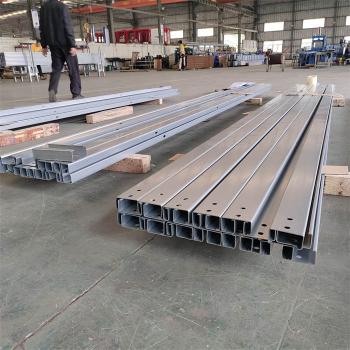

    Galvanized Support Beams Specification

    1. Made of high-quality galvanized steel, it has good corrosion resistance and stability.
    2. Unique design, simple structure and easy installation.
    3. The mounting holes and hole positions can be customized according to customer needs, and can be flexibly adapted to various occasions.
    4. Rich specifications and sizes to meet the needs of different projects.
    5. Long service life, excellent performance, suitable for various environments.


    Customaziable Hole Shape & Distance

    The mounting holes and hole locations on the solar support beams can be customized according to customer needs, allowing the support beam to be flexibly installed in various situations. At the same time, this product also has a wide range of specifications and sizes for customers to choose from, which can meet the needs of different projects.


    Precautions

    1. Before installation, please ensure that the size of the support beam and the location of the mounting holes meet the design requirements.
    2. During installation, please use appropriate tools to avoid damaging the support beams.
    3. After installation is complete, check to ensure the stability of the support beams.
    4. During use, regular inspection and maintenance are required to ensure the normal use of the product.

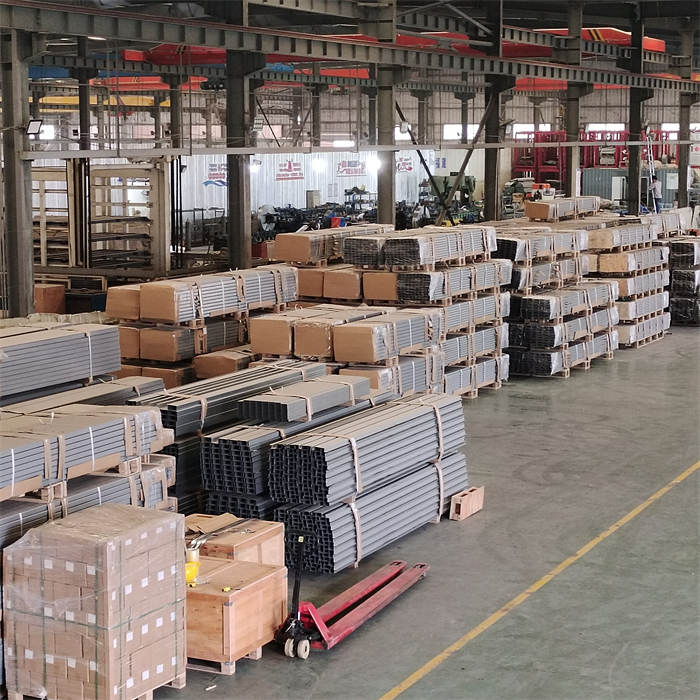

    Packaging and Transport

    This product uses standard packaging to ensure the safety and integrity of the product.
    The product manual is included in the package to facilitate customers to understand product information and installation methods.
    During product transportation, we will take measures to ensure the safety and stability of the product.


    Jiazhijing photovoltaic support
