    AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System
    AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System
  • AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System
  • AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System
  • AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System
  • AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System
  • AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting SystemAL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting SystemAL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting SystemAL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System

    AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System

    Aluminum ground mounting system is a highly anti-corrosive and most aesthetic structure for ground mount installation. The AL6005-T5 supporting footing is delivered with pre-assembled design of the highest level in factory and simplifies construction site work to the largest degree. The optimized design is carried out by experienced engineers to offer different joints according to different site conditions. It can be installed on ground screws or concrete foundations, and achieves variable inclination and height and makes plant design flexible.

     AL6005-T5 Steel-Aluminum Solar Hybrid Ground Mounting System

    Aluminum Solar Ground Mounting System Advantage

    1.High salt fog or high corrosion areas.
    2.Light weight,easy installation.
    3.Highly pre-assembled design before shipment makes installation time-saving.
    4.Corrosion resistant and light-weight ensured by aluminum structure.
    5.Wide range of rails and joints for different site conditions.


    Technical Parameters


    Parameter Description
    Material Al6005-T5
    Design Standard
    JIS C8955 -2011.AS/NZS 1170.0,IEC62817,etc.
    Foundation Type
    Q235 Hot Dip Galvanized Steel
    Galvanized Thickness
    70um -100um, Per Local Codes
    Wind Load
    ≤60m/s, Per Local Codes
    Snow Load
    ≤16KN/M,Per Local Codes
    Module Type
    Compatible with all modules
    Panel Layout
    Portrait or Landscape
    Service Life
    ≥25 years
    Warranty
    20 years

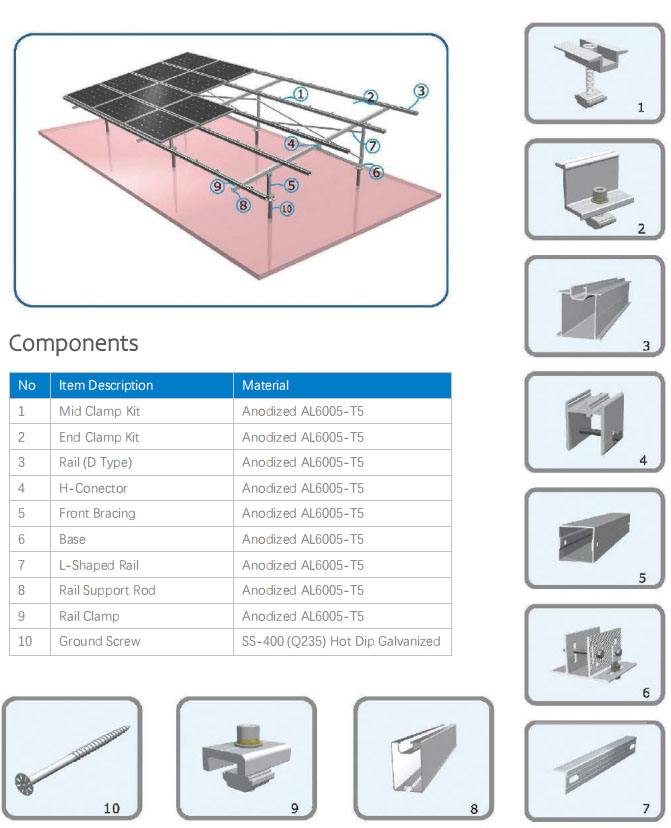

    Components Details

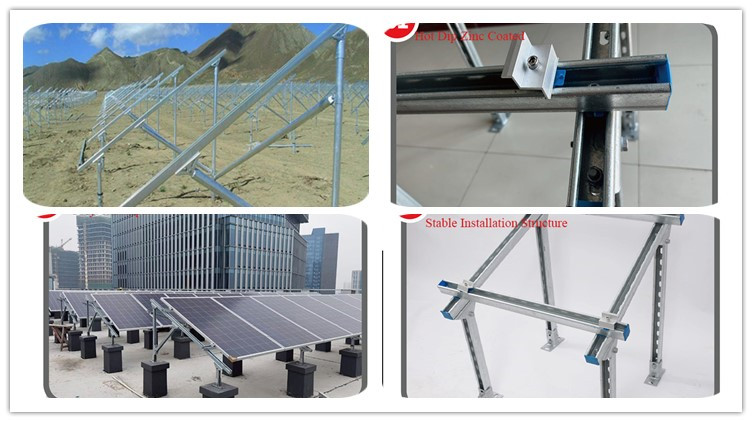

    Features

    Solar aluminum ground mounting systems have several great features that make them an excellent choice for solar panel installations.


      • Versatility: These mounting systems are designed to be adaptable to various terrains, including flat or sloped ground. They can be easily adjusted to accommodate different installation angles and optimize solar panel performance.

      • Durability: Made from high-quality aluminum, these mounting systems offer excellent strength and corrosion resistance, ensuring long-term durability even in challenging weather conditions.

      • Easy Installation: The modular design of aluminum ground mounting systems allows for quick and straightforward installation. They often come with pre-assembled components and streamlined installation processes, saving time and effort.

      • Flexibility: These systems are compatible with a wide range of solar panel sizes and configurations, providing flexibility for different project requirements. They can be easily customized to accommodate specific panel layouts and maximize energy production.

      • Maintenance-friendly: With their simple and sturdy design, aluminum ground mounting systems require minimal maintenance. They typically feature self-cleaning capabilities to shed dirt and debris, ensuring optimal solar panel performance over time.

      • Sustainability: Aluminum is a lightweight and recyclable material, making these mounting systems an eco-friendly choice. They contribute to reducing the carbon footprint of solar installations while maintaining structural integrity.
